Electrical Control Panel Board

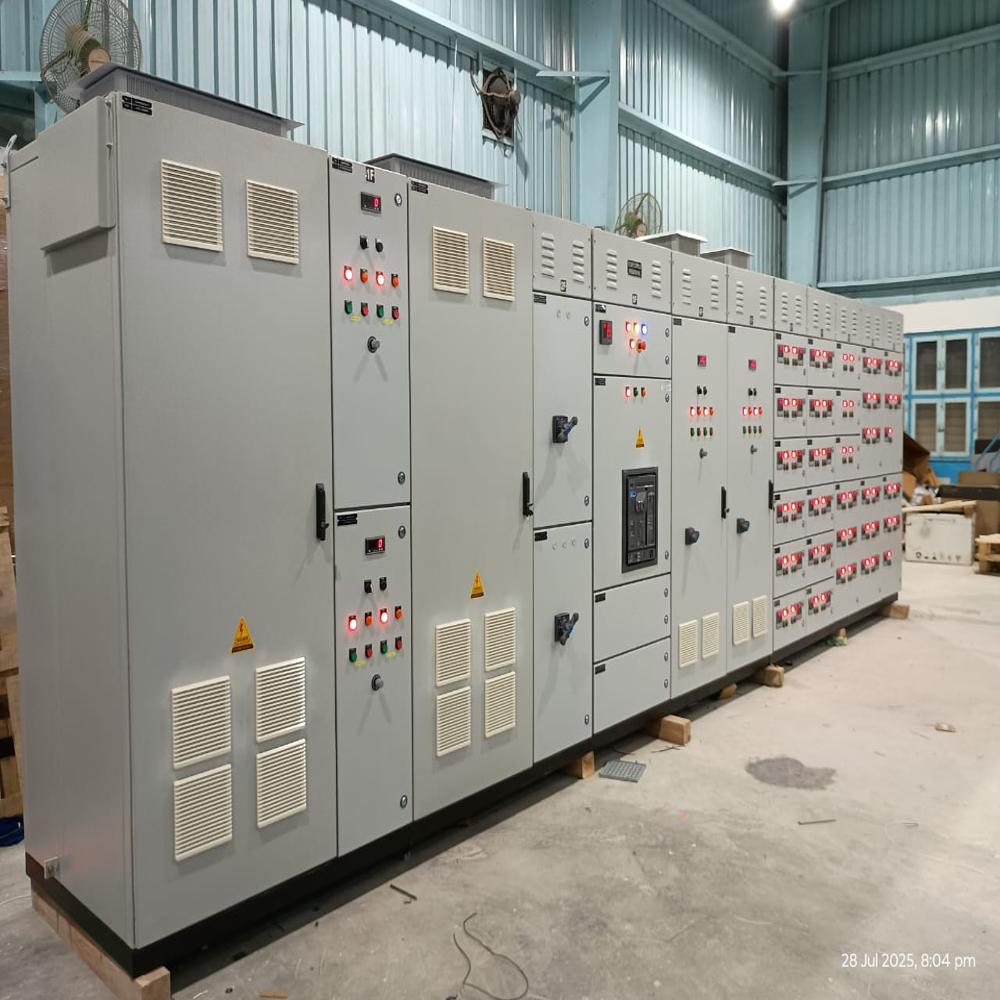

Name: Electrical Control Panel Board
Brand: PSP TECHNO ENGINEERS PVT. LTD.
Price: 50000.00 INR
Availability: InStock

Price 50000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electrical Control Panel Board Specification

Base Material
Mild Steel

Protection Class
Class I

Current Rating
630A

Way
Multiple Way

Cooling System
Natural Air Ventilation

Cover Material
Mild Steel

Rated Insulation Voltage
690V

Thickness
1.6 mm

Operating Voltage
415V AC

Rated Operation Voltage
415V

Components
MCB, MCCB, Contactor, Overload Relay, Indicator Lamps

Cabinet Material
Powder Coated Mild Steel

Connectivity Type
Terminal Block Connections

Panel Type
Floor Mount

Protection Level
IP54

Control System
Manual / Automatic

Rated Current
630A

Features
Corrosion Resistant, Dust Proof, Easy Installation

Product Type
Other

Material
Metal Base

Surface Finish
Powder Coated

Standard
IEC 60439, IS 8623

Surface Color
Grey

Rated Voltage
220-440 Volt (V)

Frequency (MHz)
50 Hz

Maximum Output Current
630A

Dimension (L*W*H)
1200 x 800 x 300 mm

Warranty
Yes

Application
Industrial Automation, Motor Control, Power Distribution

IP Rating
Ip54

Display Type
Analog Meters

Short Circuit Withstand Capacity
Up to 36kA

Busbar Material
Electrolytic Copper

Neutral Link
Provided

Panel Weight
Approx. 65 kg

Factory Testing
Routine & Dielectric Test

Relative Humidity
Up to 90% RH (Non-Condensing)

Door Type
Single/Double Door with Lock

Gasket Type
Neoprene/Silicon

Mounting Type
Floor Standing

Seismic Qualification
Available on request

Cable Entry
Top / Bottom Cable entry

Earthing Provision
Provided

Ambient Temperature Range
-10C to +55C

Compliance Certification
CE Marked, ISO 9001:2015

Electrical Control Panel Board Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
8 Days

Main Domestic Market
, All India

About Electrical Control Panel Board

Experience elite performance and reliability with our Electrical Control Panel Board, a magnificent solution for industrial automation, motor control, and power distribution. Crafted with noble electrolytic copper busbars, this must-have panel features a corrosion-resistant powder-coated mild steel cabinet and versatile floor-standing design with secure single/double door options. Boasting an impressive short circuit withstand capacity up to 36kA, IP54 dust proofing, and certified safety (CE, ISO 9001:2015), it operates efficiently from -10C to +55C and up to 90% humidity. Add to cart for a masterful upgrade today!

Robust Features & Versatile Applications

Widely used by engineers and plant operators, this Electrical Control Panel Board is designed for industrial automation, motor control, and power distribution applications. With its noble construction and thoughtful safety features including earthing provision and neutral link, the panel excels in demanding environments. Top and bottom cable entry, corrosion resistance, and dust proofing ensure unsurpassed reliability. Its user-friendly interface and adaptable mounting options make it an indispensable asset across various industries and process plants.

Sample Availability & Seamless Order Processing

Samples of the Electrical Control Panel Board are available to assist with rigorous evaluation. FOB Port: India ensures efficient worldwide shipping. Payment terms are flexible to suit client needs. Order processing is streamlined, with clear estimates and prompt logistics management ensuring timely delivery. Manufacturers, exporters, suppliers, and traders benefit from a transparent and efficient procurement process, supporting large-scale industrial requirements and special project needs.

FAQ's of Electrical Control Panel Board:

Q: How can I request a sample of the Electrical Control Panel Board?

A: You can request a sample by contacting our sales team directly. They will guide you through the estimate, documentation, and shipping process to facilitate your evaluation needs.

Q: What are the main advantages of using an Electrolytic Copper busbar?

A: Electrolytic copper busbars provide superior electrical conductivity, durability, and reduced power losses, ensuring stable and efficient power distribution for demanding industrial environments.

Q: When do I need to specify seismic qualification for my order?

A: Seismic qualification is available on request and is recommended if the panel will be installed in areas prone to seismic activity or where compliance to such standards is mandated by your project requirements.

Q: Where can the panel be installed and what environments is it suitable for?

A: The panel is designed for floor-mounted installation in industrial and automation settings and can withstand ambient temperatures between -10C to +55C and up to 90% relative humidity (non-condensing).

Q: What certifications and standards does the Electrical Control Panel Board meet?

A: The panel is CE marked, certified to ISO 9001:2015 standards, and constructed to comply with IEC 60439 and IS 8623 standards, ensuring reliability, safety, and quality.

Q: How do I benefit from the advanced protection features of this panel?

A: The IP54-rated enclosure offers excellent protection against dust and accidental contact, while the use of robust components, earthing provisions, and neutral links guarantee safe operation and longevity.
