Ht Panel

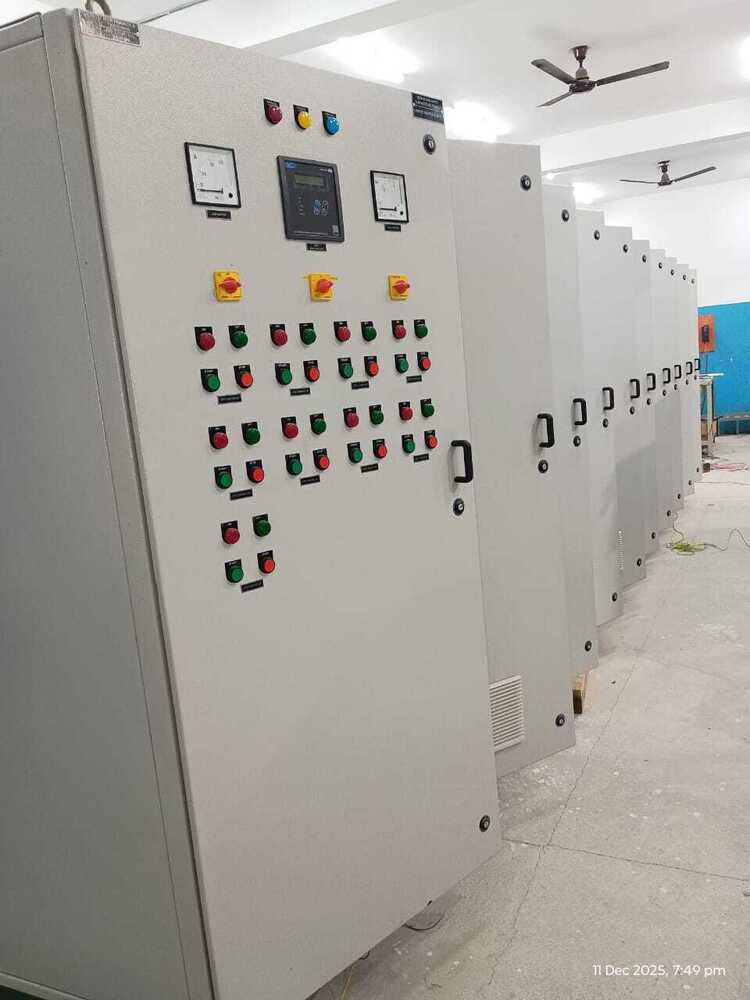

Name: Ht Panel
Brand: PSP TECHNO ENGINEERS PVT. LTD.

Price 250000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ht Panel Specification

Panel Type
Indoor/Outdoor

Protection Class
Class I

Cooling System
Air Cooled

Connectivity Type
Cable Entry (Top/Bottom)

Rated Current
800A

Current Rating
800A

Way
3 to 12 Way

Cabinet Material
Mild Steel

Rated Insulation Voltage
12 kV

Control System
Microprocessor Based

Protection Level
IP54

Cover Material
Mild Steel

Base Material
Mild Steel

Operating Voltage
11 kV

Components
VCB/ACB/MCB, CT, PT, Relays, Busbar, Switches

Thickness
1.6-2.5 mm

Rated Operation Voltage
11000 V

Features
Dustproof, Rustproof, Shockproof

Product Type
HT Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Grey

Rated Voltage
11 kV

Frequency (MHz)
50 Hz

Maximum Output Current
800A

Dimension (L*W*H)
Customizable

Phase
440V/IP54

Application
Power Distribution and Protection

IP Rating
Ip54

Display Type
LED / Analog Meter

Paint Type
Epoxy Polyester Powder Coating

Compliance
IS/IEC Standards

Operating Position
Fixed or Draw-out

Metering
Digital or Analog

Ambient Temperature Range
-10C to +55C

Busbar Material
Electrolytic Grade Aluminium / Copper

Wiring Type
FRLS Cables

Installation Type
Floor Mounted

Protection Devices
Over Current, Earth Fault, Under Voltage

Customization
Available as per Requirement

Short Circuit Rating
25/31.5 kA

Accessories
Cable Trays, Gland Plates

Earthing
Double Earthing Provided

Design
Compartmentalized

Humidity Resistance
Up to 95% RH

Mounting Type
Indoor/Outdoor

Panel Door
Lockable, Hinged

Input Supply
3 Phase AC

Maintenance
Front/Rear Access

Case Material
CRCA Sheet

Ht Panel Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
3 Week

Ht Panel About

Procure the ultimate in electrical distribution control with our HT Panel, engineered for unparalleled protection and enduring performance. Crafted using sublime quality CRCA and mild steel, its compartmentalized, floor-mounted design withstands an ambient temperature range from -10C to +55C. This ephemeral solution features robust short-circuit ratings (25/31.5 kA), double earthing, and an IP54 enclosure for dust/rust resistance, ensuring a secure, reliable operation. Choose from electrolytic grade aluminium or copper busbars, with digital or analog metering, microprocessor-based controls, and customized dimensional outlays. Conforms to IS/IEC standards for safety and efficiency.

Key Advantages, Usage & Exceptional Features

Our HT Panel delivers prime commercial benefits, making it indispensable for power distribution and protection. It features front/rear maintenance access, customizable dimensions, state-of-the-art metering, and microprocessor-based control. The panel's dustproof, shockproof, and rustproof finish, along with double earthing and high humidity resistance, ensures prolonged operation in demanding environments. It caters to a plethora of commercial and industrial applications, including supplying robust connectivity with top/bottom cable entry and durable epoxy polyester powder coating for an unparalleled finish.

Efficient Delivery, Robust Packaging & Shipping Details

Our HT Panels are promptly dispatched after thorough quality checks and outlay confirmations. Panels are securely packaged using industrial-grade materials to safeguard against transit damage, ensuring each unit arrives in pristine condition. Shipments can be arranged via major FOB ports across India, catering to both domestic and international ventures. Customers are consistently updated on shipment progress, guaranteeing transparent timelines, so your critical infrastructure needs are always shipped on schedule.

FAQ's of Ht Panel:

Q: How does the HT Panel ensure reliable power distribution in demanding environments?

A: The HT Panel's compartmentalized design, double earthing, high short-circuit rating, and IP54 protection class collectively offer stable, safe, and enduring power distribution in various commercial and industrial settings.

Q: What are the main commercial uses of the HT Panel?

A: This panel is primarily used for power distribution and protection in commercial complexes, industrial plants, and infrastructure projects, supporting various load requirements with customizable configurations and superior protection features.

Q: When can customers expect the delivery of their HT Panel orders?

A: HT Panel orders are dispatched promptly after quality and outlay checks. Delivery timelines vary depending on customization and shipping location, with progress updates provided throughout the process.

Q: Where is the HT Panel manufactured and exported from?

A: Our HT Panels are manufactured, supplied, and exported from India, utilizing high-quality materials and following strict IS/IEC standards to ensure reliability and performance across domestic and global markets.

Q: What is the process for customizing an HT Panel according to specific requirements?

A: Customers can specify their desired dimensions, configuration, protection devices, and metering preferences during the procurement process. Expert engineering teams collaborate closely to deliver the best solution, tailored to exact project needs.
